X1L Elite
Pairs well with
This light matches my XHP 35 Hi DM11 for throw roughly doubling the volume of light and with fantastic CRI. In other words as a standalone light walking in the countryside I can see far better with the X1L. It works very well. I bought it for USD71- which is a fair price. Beamshots shortly on Reddit.
I changed 4500k 70.3 to 5000k 70.3 70cri, the brightness increased by 32% while the shade remained neutral, and L35 1.0 continued to be cast, it's a pity that this shade is not in the stock
Took a whole month to arrive but the light is perfect. I would highly recommend the LLC59R optic as it throws the farthest out of all of the available optic options.
The beam is wider than i expected, but it is a pleasant surprise. The MAO finish is beautiful! The stock optic with 707a makes for a very nice floody thrower
Great build quality, very nice and precise finish of the flashlight. The FFL707A 5000K LED has a very pleasant and unique shade with a touch of pink. Duv -0.0134 to -0.0167 depending on the brightness level. Nice light for outdoor and indoor use.
Anduril2 is a complex software but pleasant to use. Nice addition to your flashlight collection :)
X1L Elite
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Description

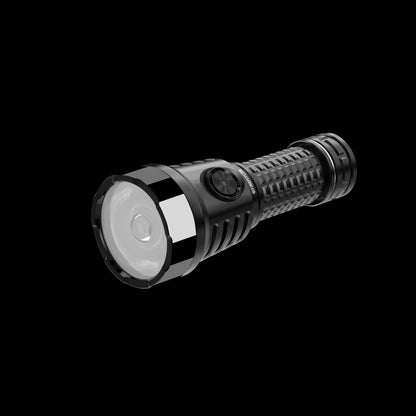

Introducing the new X1L Elite.
We took one of the best TIR optics and paired it with the unparalleled Lume X1 constant-current boost driver electronics. Turn night into daylight - for your outdoor adventures and beyond.
Features
- Size - 126mm x 48mm x 28.5mm
- Weight - 165g (without batteries)
- Gaggione LLC59NF Total Internal Reflection Optics (7-deg)
- New Toughened Micro-Arc Oxidation Finishes
- New Firefly High CRI Emitter Options (FFL707A series), Cree XHP70.3 HI, Luminous SFT-70
- Max Output: ~3800 Lumens (depending on emitter choice)
-
Limited Emitter Option: FFL707A 1800k CRI95 2000LM 'Rosy Sunset' - please contact us for a custom order.
- Max Output: ~3800 Lumens (depending on emitter choice)
- Battery - unprotected flat-top 21700 (not included, recommended to use high-drain cells including Molicel P42, P45, P50, or Samsung 40T, 50S, or Vapcell T50)
- RGB Auxiliary (front), Illuminated Blue Side Switch with Red Charging Indicator
- CNC Construction, 6063-T6 Alloy, PVD-coated Stainless Steel Bezel
- Lume X1 40W Boost Driver, Constant Current Regulated (up to 95% efficiency) with UDR (Ultra Dynamic Range)
- Be-Cu Silver-Plated Springs
- Toughened Front Glass Lens, AR Coated (~98% transmittance)
- Anodized T-cut Threads
- 10W Fast Charging, Firefly Patented Magnetic Type-C Port (Patent 2023235776065)
- Magnetic Tail Cap (optional add-on)
- Water Resistance - IPX8
Included Accessories
- 1x SS Clip
- 1x Lanyard
- 1x Spare AR-Coated Front Glass
- Spare O-rings
All X1L Elite flashlights come with a standard tailcap with the same finish as the body. An optional black PVD-coated magnetic tailcap is available separately (order here).
Runtime* Table
|
Mode |
Brightness |
Runtime |
|
|
Moon |
<0.01 lm |
months |
|
|
Low |
15 lm |
days |
|
|
Mid2 |
130 lm |
14 hrs |
|
|
Mid1 |
600 lm |
4.5 hrs |
|
|
High |
1800 lm |
2.2 hrs |
|
|
Turbo @ 0s |
3800 lm |
2 hrs |
|
|
Turbo @ 30s |
1800 lm |
Temp. Regulated |
|
|
Turbo @ 10m |
1200 lm |
*Vapcell 21700 T50 Battery
User Interface: (Anduril V2)
This flashlight uses the open-sourced Anduril user interface. Anduril 2 is an open-sourced software and distributed under the terms of GPLv3. The source can be accessed here.
By default, this flashlight begins in Simple UI with 5 brightness levels. Enter the hidden Advanced UI to access additional features and more configuration options. Details can be found in Anduril User Guide.
Charging
X1L Elite features an intelligent 10W battery charger. For optimal charging, use a USB-C port that can source at least 5V 3A. Upon the start of charging, the side-switch illuminates red. When charging is complete, the red indicator turns off. A flashing red indicator indicates a charge fault.
For battery safety, cells below 3V are pre-charged at 100mA before the full 10W charge starts, transitioning to constant voltage, and ending with trickle-charging. The charger includes a 10-hour safety timer to prevent extended charging.
While not recommended, the flashlight may be used while charging, but if operated at higher power levels than the charging rate, the battery will not be charged.
Battery Level Indicator
Anduril2 UI uses the front RGB auxiliary LEDs to indicate the current battery level upon turn-off. The colors correspond as follows:
This post-off display can be turned off or configured in Anduril.
Operation Notes
- The X1L Elite is a high-performance flashlight and can generate a lot of heat during operation. Please understand that this is not a toy and should be handled with safety.
- To prevent accidental activation of the flashlight, it is recommended to lock-out the flashlight (4 clicks from off to lock or unlock) before storage, or unscrew the body slightly as a mechanical lock-out.
- This flashlight has low-voltage protection which cuts off power at 2.8V. It is recommended to begin recharging the cell before this happens to increase battery longevity.
